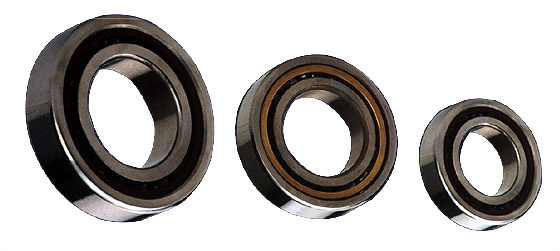

| 精密轴承 |
| 发布时间：2015-07-13 浏览量：3852 |

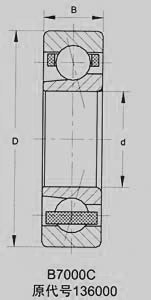

基本尺寸
Principal Dimensions |
型号
Designation |
额定负荷(kN)
Basic Load ratings |
油润滑极限转速
(rpm) Oil |
中预负荷
(N)
Medium Preload |
|
d |
D |
B |
动负荷
Dynamic |
静负荷
Static |
|
15 |
32 |
9 |
B7002C/P5 |
4.8 |
2.7 |
64000 |
86 |
|
B7002C/P4 |
4.8 |
2.7 |
80000 |
86 |
|
17 |
35 |
10 |
B7003C/P5 |
5.0 |
3.1 |
51000 |
90 |
|
B7003C/P4 |
5.0 |
3.1 |
64000 |
90 |
|
20 |
42 |
12 |
B7004C/P5 |
7.5 |
4.7 |
43000 |
135 |
|
B7004C/P4 |
7.5 |
4.7 |
54000 |
135 |
|
25 |
47 |
12 |
B7005C/P5 |
10.0 |
6.8 |
38000 |
180 |
|
B7005C/P4 |
10.0 |
6.8 |
48000 |
180 |
|
30 |
55 |
13 |
B7006C/P5 |
12.1 |
9.0 |
36000 |
218 |
|
B7006C/P4 |
12.1 |
9.0 |
45000 |
218 |
|
35 |
62 |
14 |
B7007C/P5 |
15.2 |
11.6 |
32000 |
274 |
|
B7007C/P4 |
15.2 |
11.6 |
40000 |
274 |
|
40 |
68 |
15 |
B7008C/P5 |
17.4 |
13.9 |
30000 |
313 |
|
B7008C/P4 |
17.4 |
13.9 |
38000 |
313 |
|
45 |
75 |
16 |
B7009C/P5 |
21.0 |
17.1 |
27000 |
378 |
|
B7009C/P4 |
21.0 |
17.1 |
35000 |
378 |
|
50 |
80 |
16 |
B7010C/P5 |
23.0 |
20.3 |
26000 |
414 |
|
B7010C/P4 |
23.0 |
20.3 |
32000 |
414 |
|
55 |
90 |
18 |
B7011C/P5 |
27.2 |
24.6 |
24000 |
490 |
|
B7011C/P4 |
27.2 |
24.6 |
30000 |
490 |
|
60 |
95 |
18 |
B7012C/P5 |
27.8 |
24.9 |
21000 |
500 |
|
B7012C/P4 |
27.8 |
24.9 |
27000 |
500 |
基本尺寸
Principal Dimensions |
型号
Designation |
额定负荷(KN)
Basic Load ratings |
脂润滑极限转速
(rpm) Grease |
中预负荷
(KN)
Medium Preload |
重量(kg)
Weight
≈ |
|
d |
D |
B |
动负荷
Dynamic |
静负荷
Static |
|
20 |
47 |
14 |
760204TN |
17.5 |
32 |
2700 |
2.3 |
0.120 |
|
52 |
15 |
760304TN |
22.1 |
41 |
2600 |
2.9 |
0.140 |
|
25 |
52 |
15 |
760205TN |
19.8 |
40.0 |
2300 |
2.5 |
0.130 |
|
62 |
17 |
760305 |
25.6 |
52.6 |
2000 |
3.3 |
0.220 |
|
30 |
62 |
16 |
760206 |
23.3 |
50.0 |
2000 |
2.9 |
0.210 |
|
72 |
19 |
760306 |
31.0 |
70.0 |
1700 |
4.3 |
0.330 |
|
35 |
72 |
17 |
760207 |
27.0 |
64.0 |
1700 |
3.3 |
0.270 |
|
80 |
21 |
760307 |
32.9 |
77.8 |
1600 |
4.8 |
0.440 |
|
40 |
80 |
18 |
760208 |
33.8 |
82.3 |
1500 |
4.3 |
0.410 |
|
90 |
23 |
760308 |
45.0 |
106.0 |
1400 |
5.6 |
0.620 |
|
45 |
85 |
19 |
760209 |
34.2 |
86.8 |
1400 |
4.5 |
0.420 |
|
100 |
25 |
760309 |
52.6 |
131.0 |
1200 |
7.0 |
0.840 |
|
50 |
90 |
20 |
760210 |
35.0 |
95.4 |
1300 |
4.9 |
0.460 |
|
110 |
27 |
760310 |
62.5 |
162.0 |
1100 |
7.6 |
1.050 |
|
55 |
100 |
21 |
760211 |
36.3 |
102.0 |
1200 |
5.6 |
0.620 |
|
120 |
29 |
760311 |
72.0 |
187.0 |
1000 |
8.8 |
1.350 |
|
60 |
110 |
22 |
760212 |
50.5 |
144.0 |
1100 |
6.5 |
0.780 |
|
130 |
31 |
760312 |
79.2 |
212.0 |
1000 |
10.0 |
1.730 |
|
65 |
120 |
23 |
760213 |
51.3 |
153.0 |
1000 |
7.0 |
0.980 |
|
140 |
33 |
760313 |
90.0 |
252.0 |
900 |
12.0 |
2.100 |
|
70 |
125 |
24 |
760214 |
58.5 |
173.0 |
900 |
7.0 |
1.000 |
|
150 |
35 |
760314 |
99.0 |
279.0 |
850 |
12.0 |
2.600 |
|
75 |
130 |
25 |
760215 |
60.3 |
187.0 |
900 |
7.6 |
1.180 |
|
160 |
37 |
760315 |
112.5 |
328.0 |
800 |
15.0 |
2.950 |
|
80 |
140 |
26 |
760216 |
68.8 |
216.0 |
850 |
8.9 |
1.400 |
|
170 |
39 |
760316 |
123.0 |
364.0 |
750 |
16.0 |
3.400 |
|
85 |
150 |
28 |
760217 |
79.2 |
252.0 |
800 |
11.0 |
1.850 |
|
180 |
41 |
760317 |
144.0 |
418.0 |
700 |
18.0 |
4.200 |
|
90 |
160 |
30 |
760218 |
88.2 |
283.0 |
750 |
11.0 |
2.200 |
|
190 |
43 |
760318 |
146.7 |
441.0 |
650 |
18.0 |
5.050 |
|
95 |
170 |
32 |
760219 |
99.0 |
320.0 |
700 |
12.0 |
2.600 |
|
200 |
45 |
760319 |
147.0 |
459.0 |
600 |
19.0 |
5.850 |
|
100 |
180 |
34 |
760220 |
110.0 |
360.0 |
650 |
14.0 |
3.100 |
|
215 |
47 |
760320 |
174.0 |
549.0 |
600 |
22.0 |
6.400 |
|
